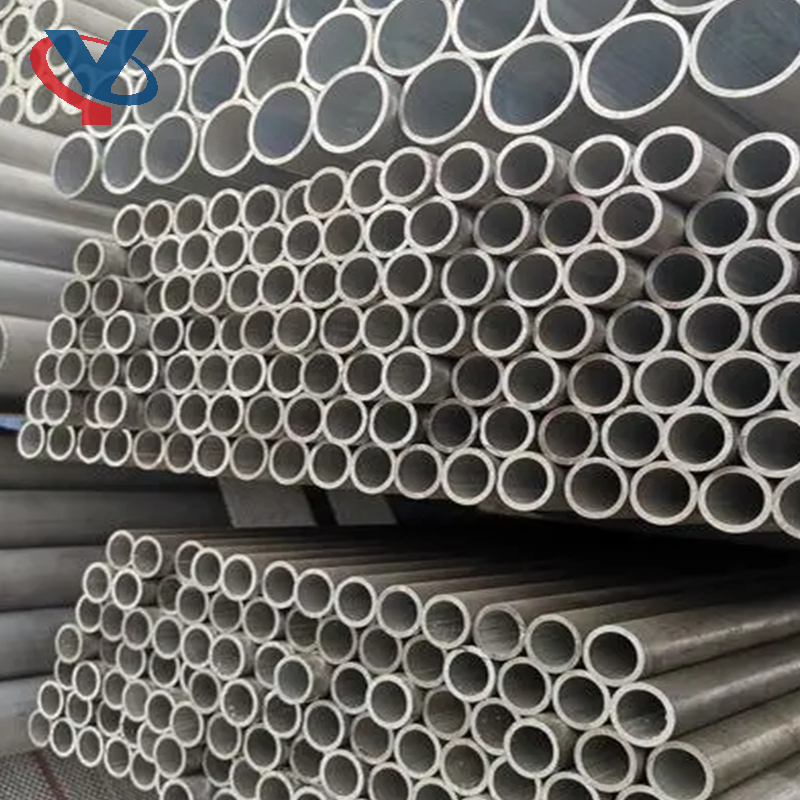

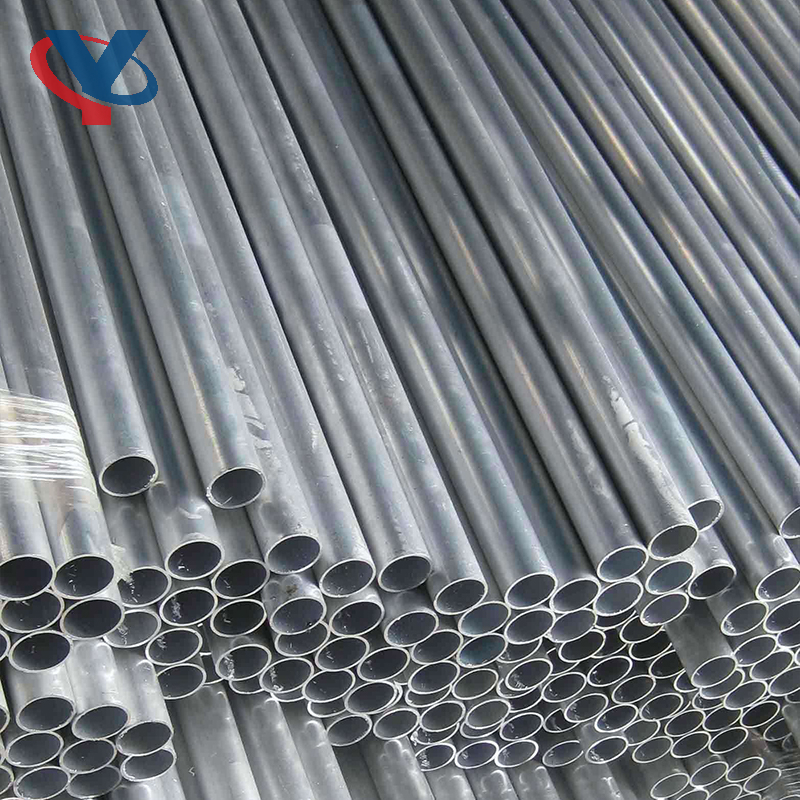

5052 Aluminum Tube

Seamless aluminum tubes can also be used in metal packaging because of their good mechanical properties, light weight, high compressive strength, durability, and ease of storage and transportation of goods. At the same time, its barrier performance is good, can block the destruction of sunlight, oxygen and moist environment, can extend the shelf life of articles.

+86 15508627502

sales03@yegangsteel.com

◉ Product Details

Aluminum Grade
Alloy Series	Grade		Typical Alloy
1000 Series	1050 1060 1070 1100		Pure aluminum
2000 Series	2024(2A12), LY12, LY11, 2A11, 2A14(LD10), 2017, 2A17		Aluminum copper alloy
3000 Series	3A21, 3003, 3103, 3004, 3005, 3105		Aluminum manganese alloy
4000 Series	4A03, 4A11, 4A13, 4A17, 4004, 4032, 4043, 4043A, 4047, 4047A		Aluminum silicon alloy
5000 Series	5052, 5083, 5754, 5005, 5086,5182		Aluminum magnesium alloy
6000 Series	6063, 6061, 6060, 6351, 6070, 6181, 6082, 6A02		Aluminum magnesium silicon alloy
7000 Series	7075, 7A04, 7A09, 7A52, 7A05		Aluminum magnesium silicon alloy
8000 Series	8006 8011 8079		Aluminum foil alloy
Specifcation for round pipe		Specification for square pipe
OD 15mm-160mm		7mm-150 mm
WT 1-40mm		1-40mm
Length		1-12m 1-12m
MOQ		1 Ton
Payment terms		T/T,L/C,Western Union,etc
Price term		Ex-work,FOB,FCA,CIF,CFR,DDU,etc
Package		Export standard package, suit for all kinds of transport, or as required
Delivery time		Within 15 days after pay the deposit
Application		Power plant，chemical，fire equipment.
Advantages		1. Reasonable price with excellent quality2. Abundant stock and prompt delivery3. Rich supply and export experience, 24 Hours sincere service
Application		Widely used in construction, machinery, coal mines, chemicals, electric power, railway vehicles, automobile industry, highways, bridges, containers, sports facilities, agricultural machinery, petroleum machinery, prospecting machinery, greenhouse construction and other manufacturing industries.

chemical composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others:Each	Others:Total	Al: Min.
1050	0.25	0.40	0.05	0.05	0.05	-	0.05	0.03	0.03	-	99.50
1060	0.25	0.35	0.05	0.03	0.03	-	0.05	0.03	0.03	-	99.60
1070	0.20	0.25	0.04	0.03	0.03	-	0.04	0.03	0.05	-	99.70
1100	0.95 Si + Fe		0.05~0.20	0.05	-	-	0.1	-	0.05	0.15	99.0
2014	0.5~1.2	0.7	3.9~5.0	0.4~1.2	0.2~0.8	0.10	0.25	0.15	0.05	0.15	margin
2017	0.2~0.8	0.7	3.5~4.5	0.4~1.0	0.4~0.8	0.10	0.25	0.15	0.05	0.15	91.5 - 95.5
2024	0.50	0.50	3.8~4.9	0.3~0.9	1.2~1.8	0.10	0.25	0.15	0.05	0.15	margin
3003	0.60	0.70	0.05~0.20	1.0~1.5	-	-	0.10	-	0.05	0.15	margin
3A21	0.60	0.70	0.20	1.0-1.6	0.05	-	0.15	0.1-0.2	-	-	margin
3004	0.30	0.70	0.25	1.0~1.5	0.8~1.3	-	0.25	-	0.05	0.15	margin
3005	0.60	0.70	0.30	1.0~1.5	0.2~0.6	0.10	0.25	0.10	0.05	0.15	margin
3105	0.60	0.70	0.30	0.3~0.8	0.2~0.8	0.20	0.40	0.10	0.05	0.15	margin
5005	0.30	0.70	0.20	0.20	0.5~1.1	0.1	0.25	-	0.05	0.15	margin
5052	0.25	0.40	0.10	0.10	2.2~2.8	0.15~0.35	0.10	-	0.05	0.15	margin
5754	0.40	0.40	0.10	0.50	2.6~3.6	0.30	0.20	0.15	0.05	0.15	margin
5A05	0.50	0.50	0.10	0.3-0.6	4.8-5.5	-	0.20	-	0.05	0.05	margin
5083	0.40	0.40	0.10	0.4~1.0	4.0~4.9	0.05~0.25	0.25	0.15	0.05	0.15	margin
6061	0.40~0.8	0.70	0.15~0.4	0.15	0.8~1.2	0.04~0.35	0.25	0.15	0.05	0.15	margin
6082	0.70~1.3	0.50	0.10	0.4~1.0	0.6~1.2	0.25	0.20	0.10	0.05	0.15	margin
7075	0.40	0.50	1.2~2.0	0.30	2.1~2.9	0.18~0.28	5.1~6.1	0.20	0.05	0.15	margin

Mechanical behavior

tensile strength (MPa)	Test stress0.2% (MPa)	HardnessHB	Elongation（%）
105-145	≥85	≥34	≥12

Physical properties

Density	melting point	Elastic Modulus	Thermal conductivity	Thermal expansion	Resistivity
2.71 Kg/m³	650 °C	71 GPa	222 W/m.K	24×10-6 /K	0.282×10 -6 Ω.m

Annealing state

Trademark	Annealing state
1xxx: 1050, 1050A, 1060, 1100	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
3xxx: 3003, 3004, 3005, 3105	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454	O, H22, H24, H26, H28, H32, H34, H36, H38, H111
6xxx: 6061, 6082	T4, T6, T451, T651
2xxx: 2024	T3, T351, T4
7xxx: 7075	T6, T651

Application scope

Aluminum uses and application areas
Food packaging	Beverage can ends, cans, bottle caps, etc.
architecture	Curtain walls, cladding, suspended ceilings, insulation, Venetian blinds etc.
Transportation	Auto parts, bus bodies, aviation ships and air cargo containers, etc.
Electronic equipment	Electrical appliances, communication equipment, PC board drilling guides, lighting and heat dissipation materials, etc.
consumer goods	Parasols, cooking utensils, sports equipment, etc.
other	Military, color-coated aluminum plate
